• Provides immediate control response
  • Accurate, repeatable linear flow control
  • Sleeve trim options match flow needs
  • High cycle life, repeatable control
  • Sleeve is the only part in contact with the media
  • Eliminates need for expensive body materials
  • External stroke adjustmen
  • Bi-directional droptight shutoff

Materials of construction

  • Ductile Iron Body
  • ATO/ATC, ATO/FC, ATC/FO pneumatic actuators
  • Electric actuators also available, see 5200E
  • Hydraulic actuators also available
  • Flanges ANSI B 16.5 Class 150
  • DIN, ASA, or BS standards also available

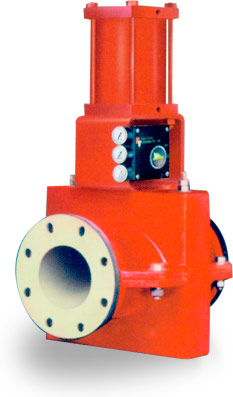

Red Valve’s Series 5200 D-Port control valve design results in an economical control valve choice. When fully open, the D-Port has 95% of the flow of a full-ported valve. Flow control begins immediately, providing a linear flow characteristic. The D-Port configuration employs a single actuator which closes from the top. This design shortens the actuator stroke, which in turn reduces operating costs. An external stroke adjustment is provided. The rugged elastomer sleeve is self-cleaning, with no packing to maintain, and provides accurate, repeatable control. The Series 5200 D-Port control valve can be furnished with a standard, double wall, or cone or sleeve design.
