Design Features:

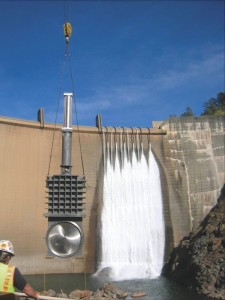

Fabricated Hydro Guard Valves are specially designed to provide shutoff or isolate flow control valve for maintenance, including: Jet Flow Valves, Throttling Knife Gate Valves, Howell-Bunger Fixed Cone Valves. Capable of closing under full flow in the event that the control valve cannot be closed. Normally bonneted, can also be supplied bonnetless.

Hydro Guard Gate Valves (H-300-B) Specifications

SIZE RANGE:
Through 144″

PRESSURE RATING:
up to 400 psi

SEATING:
Metal or Resilient

MATERIALS:
Valves are available in solid or wetted parts construction in any weldable alloy. Typical construction is carbon steel body with stainless steel wetted parts.
