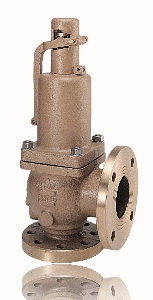

762 Series Cryo Brz High Lift Safety Valve c/w Easing Gear

762 Series (Mn.Br. Trim), 763 Series (Stainless Steel Trim)

Flange Type – ANSI, DIN EN, AS/BS

Material: Bronze, Brass, AB Brass, Manganese Bronze

Applications: Liquid, Gas & Oxygen Service

Working Temperature: -196°C to + 190°C

Max Working Pressure: 150# – 1.55 Mpa (225 psi), Non-Shock Cold

Max Working Pressure: 300# – 3.45 Mpa (500 psi), Non-Shock Cold

Standards

Degreased, Packed for Oxygen Services (ASTM G93)
Design accordance with EN12516 part 2 & 4, AS1271, AS1210, EN 4126-1, API 520, ASME B16.24
End Connection: ASME B16.24, ASME B16.5, AS 2129, EN 1092, ISO 7005, DIN 2501
Tested to API 527, EN4126-1, AS1271

Notes

Face to face connection: Flat Face and Raised Face. Various materials (Monel) are available upon request
