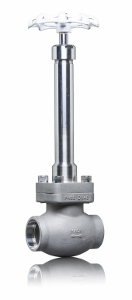

1296 Series (Brass Trim), 1299 Series (Stainless Steel Trim), PN50
BSPT, NPT, Socket Weld, Butt Weld Ends
Material: Brass
Applications: Liquid, Gas & Oxygen Services
Working Temperature: -196°C to +190°C
Max Working Pressure: 5.0 Mpa (725 psi), Non-Shock Cold
Standards
Degreased, Packed and labelled for Oxygen Services (ASTM G93)
Design accordance with EN12516 part 1 & 2 , AS1210, EN1626, ASME B16.34
End Connection: ISO 7-1, ASME B1.20.1, ASME B 16.11, ASME B16.25
Tested to ISO 5208, API 598
CE, Pressure Equipment Directive (97/23/EC)
Notes
Various materials (Monel), schedule pipe and tube connection are available upon request
