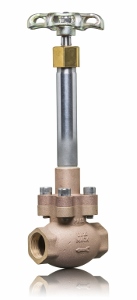

1293 Series, PN50

BSPT, NPT, Toe Nipple Ends

Material: Bronze, Brass

Applications: Liquid, Gas, and Oxygen Services

Working Temperature: -196°C to +190°C

Working Pressure: 5.0 Mpa (725 psi), Non-Shock Cold


Degreased, Packed and labelled for Oxygen Services (ASTM G93)
Design accordance with EN12516 part 2 & 4, AS1210, EN1626, ASME B16.24
End Connection: ISO 7-1, ASME B1.20.1
Tested to ISO 5208, API 598
CE, Pressure Equipment Directive (97/23/EC)


Various materials (HTB1), schedule pipe and tube connection are available upon request
