Features

  • Simple, automatic valve design
  • Body acts as built-in actuator
  • No need for actuators or electric motors
  • Threaded end connections for easy installation
  • Cost effective and maintenance free
  • The only valve that closes “drop tight” on solids
  • No cavities or dead spots to bind valve operation
  • Full port design
  • Not affected by harsh external environments
  • No packing to replace or maintain, ever

Materials of construction

  • Steel, Stainless Steel or PVC body
  • Steel, Stainless Steel or PVC End connections
  • Special end connections available

Description

Manufactured on the same design principles as Red Valve’s Type A Valve, Series 2600 Miniflex Valves are the simplest and least expensive control valves available to industry today. The Series 2600 is designed with threaded end connections, enabling use on small lines (1/8”-2”).Miniflex Valves are pneumatically actuated, using the valve body as a built-in actuator. Air pressure opens and closes the rubber sleeve, eliminating costly actuators or electric motors and the accompanying maintenance costs. Only 25 psi over line pressure is required for closure. Threaded end connections enable easy installation and removal.

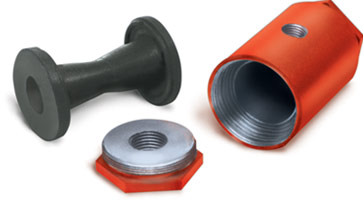

The Miniflex Valve has only four parts and requires little or no maintenance. The valve cycles rapidly, making it ideal for sampling, filling, and controlling. The elastomer sleeve is molded and does not have fabric reinforcement, making it easier to open and close. The 2600 is also an excellent choice for chemical feeding, dry powder, bagging and plastic molding applications with controlling acids, slurries, reagents or catalysts.
