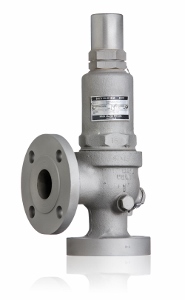

720 Series

Flange Type – ANSI, DIN EN, AS/BS

Material: Stainless Steel

Applications: Liquid, Gas & Oxygen Service

Working Temperature: -196°C to + 190°C

Max Working Pressure: 150# – 1.90 Mpa (275 psi), Non-Shock Cold

Max Working Pressure: 300# – 4.96 Mpa (720 psi), Non-Shock Cold

Standards

Designed in accordance with EN12516 part 1, 2 & 4, EN 4126-1, API 520, AS1271, ASME B16.34
End Connection: ASME B16.34, ASME B16.5, AS 2129, BS 4504, EN 1092, ISO 7005, DIN 2501
Tested to API 527, EN 4126-1, AS 1271

Notes

Degreased, Packed for Oxygen Service. Face to face connection: Raised Face
