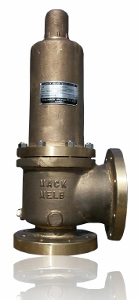

713 Series (Bronze Seat), 721 Series (Stainless Steel Seat)

Flange Type – ANSI, DIN EN, AS/BS

Material: Bronze, Brass, Manganese Bronze

Applications: Liquid, Gas, & Oxygen Service

Working Temperature: -196°C to +190°C

Max Working Pressure: 150# – 1.55 Mpa (225 psi), Non-Shock Cold

Max Working Pressure: 300# – 3.45 Mpa (500 psi), Non-Shock Cold

Standards

Degreased, Packed and labelled for Oxygen Services (ASTM G93)
Designed in accordance with API 526, AS 1210, AS1271, ASME B16.24
End Connections: API 526, ASME B16.24, ASME B16.5, AS 2129, EN 1092, ISO 7005, DIN 2501
Tested to API 527

Notes

Various materials (HTB1) are available upon request. Available with easing gear
