Design Features:

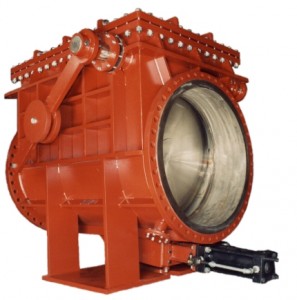

The H-950 is designed for horizontal or vertical flow (not suitable for down-flow applications). When fully open the valve disk is out of the flow area allowing for 100% uninterrupted flow.

The valve comes equipped with a bolted cover which can be removed while the valve is in the line. The connection between the disk and disk arm allows disk to move for precise alignment with seating surface. The valve is available with external counterweight and dampener.

The H-950 can be fabricated from any weldable alloy and is clearly marked to show direction of flow.

3″ to 24″ is standard, but larger sizes are available.

Swing Check Valve (H-950) Specifications

SIZE RANGE:
Through 54″

TEMPERATURE RANGE:
up to 1000°F

PRESSURE RATING:
up to 150 psi

SEATING:
Metal or Resilient

MATERIALS:
Valves are available in solid or wetted parts construction in any weldable alloy, including Stainless Steel, Hastelloy, Inconel, Monel and Titanium.

ABRASIVE SERVICE:
Optional abrasion and corrosion resistant designs with hard facing available in Stellite, Tungsten Carbide, Pulse Fusion.
