Design Features:

Fabricated discrete models designed to application needs in custom styles, configurations and materials. Can be designed in a variety of port configurations and sizes.

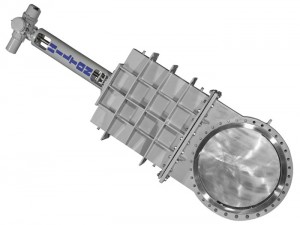

Custom Fabricated Gate Valves Specifications

SIZE RANGE:
Through 144″

TEMPERATURE RANGE:
-40°F to 2000°F

PRESSURE RATING:
Through ANSI Class 900

SEATING:
Metal or Resilient,Uni-directional or Bi-directional with options for removable seat, inflatable seal or grease seal.

MATERIALS:
Valves are available in solid or wetted parts construction in any weldable alloy, including Stainless Steel, Hastelloy, Inconel, Monel and Titanium.

ABRASIVE SERVICE:
Optional abrasion and corrosion resistant designs with hard facing available in Stellite, Tungsten Carbide, Pulse Fusion.

VALVE STYLE:
BIV, Coal Burner Isolation Valve
H-2150 Split Gate (Double Gate)
H-21 Sluice Gate
Others includes custom configuration of the face to face, actuation, etc. of the other valve styles.
