The direction of Tideflex Engineering is to develop systems that are simple in operation and require little or no maintenance while at the same time achieve the highest levels of performance.  The Tideflex check valve and mixing nozzle provides the simplicity and maintenance free operation required.

The Tideflex Technology Engineering Department has developed several specialized design models specific to the performance characteristics of the Tideflex Check Valves and Hydrodynamic Mixing Nozzles.  Tideflex also integrates specialized models available in the environmental industry such as Computational Fluid Dynamics (CFD) for hydrodynamic mixing design within fixed boundaries.  Tideflex Technologies utilizes and maintains the most current version of the design software AutoCAD and provides consulting engineers CAD files of the proposed and final mixing systems.

The combination of specialty constructed products and hi-tech computer modeling has made the Tideflex mixing systems product lines the most innovative in the industry.  Tideflex Technologies approach to mixing design and the validity confirmed through computer modeling is redefining many of the standards and guidelines applied to mixing design.

Diffused Aeration & Mixing Systems
Process & Equipment Design Model

Design Modules within the Modeling Program:

  • Input / Design Parameters
  • Tank Geometry
  • AOR Design Table
  • Food to Biomass Evaluation
  • BOD / COD / NH# Reduction Calculations
  • AOR Selection
  • Diffuser Design for Oxygen Demand
  • System Design for Mixing
  • Post Aeration Design
  • Aerobic Digester Design
  • Channel Mixing Design
  • System Headloss Calculations
  • Heat Transfer in Drop Pipes
  • Operating Pressure and Blower Sizing
  • Orifice Plate Sizing
  • Air Curtain Design
  • Volatile Organics Stripping

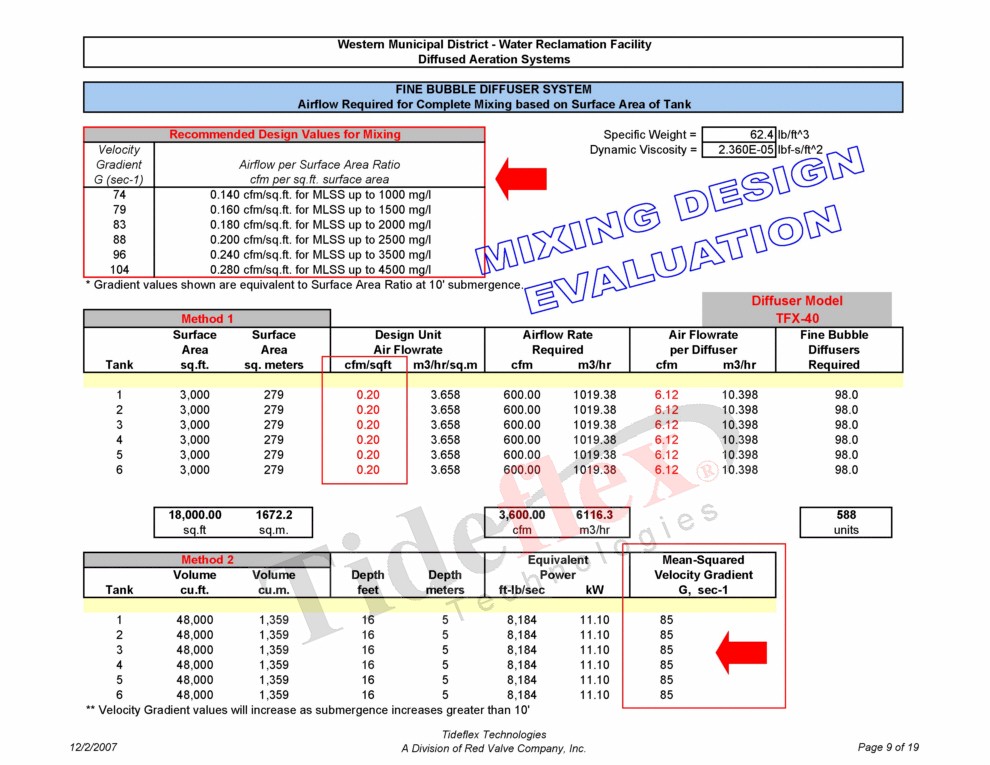

The Tideflex Aeration Model is set-up and run by Tideflex design engineers specific to the application, key design factors and results are identified and highlighted in the model output.  The model output is printed in Adobe full color format and emailed directly to the consulting engineer for review.  Once the design has been finalized between Tideflex engineers and the project consultant the output model becomes a process operations document and is included within the Installation, Operations & Maintenance Manual provided by Tideflex with the system.

Tideflex Mixing System (TMS) for Water Resevoirs

Process & Equipment Design Model

Design Modules within the Modeling Program:

  • Input / Design Parameters
  • TMS Configuration Selection
  • Manifold Hydraulic Calculations for Fill Cycle at Range of Flows
  • Manifold Hydraulic Calculations for Draw Cycle at Range of Flows
  • Tideflex Inlet Nozzle Hydraulic Calculations and Performance Curves
  • Waterflex Outlet Check Valve Hydraulic Calculations and Performance Curves
  • Velocity Gradient Analysis
  • Mixing and Tank Turnover Analysis
  • Jet Terminal Rise Height Calculations

The Tideflex TMS Hydraulics and Mixing Analysis Model is set-up and run by Tideflex design engineers specific to the application, key design factors and results are identified and highlighted in the model output.  The model output is printed in Adobe full color format and emailed directly to the consulting engineer for review.  Once the design has been finalized between Tideflex engineers and the project consultant the output model becomes a process operations document and is included within the Installation, Operations & Maintenance Manual provided by Tideflex with the system.

Hydraulic Recirculation & Mixing Systems
Process & Equipment Design Model (HRMS)

Design Modules within the Modeling Program:

  • Site Conditions & Fluid Properties
  • Tank / Channel Geometry
  • Design by Velocity Gradient
  • Variable Orifice Performance Curves
  • System Headloss Calculations
  • Distribution Orifice Design
  • Recirculation Pump Sizing

The Tideflex HRMS Model is set-up and run by Tideflex design engineers specific to the application, key design factors and results are identified and highlighted in the model output.  The model output is printed in Adobe full color format and emailed directly to the consulting engineer for review.  Once the design has been finalized between Tideflex engineers and the project consultant the output model becomes a process operations document and is included within the Installation, Operations & Maintenance Manual provided by Tideflex with the system.

Effluent Diffuser Systems
Process & Equipment Design Model

Design Modules within the Modeling Program:

  • Input / Design Parameters
  • Tideflex Diffuser Nozzle Hydraulic Calculations and Performance Curves
  • Hydraulic Optimization
  • Densimetric Froude Number Calculations
  • Thrust Calculations
  • Effective Diameter Calculations for Input into CORMIX, Visual Plumes
  • Valve Configuration and Orientation Selection

The Tideflex Effluent Diffuser Hydraulics Model is set-up and run by Tideflex design engineers specific to the application, key design factors and results are identified and highlighted in the model output.  The model output is printed in Adobe full color format and emailed directly to the consulting engineer for review.  Once the design has been finalized between Tideflex engineers and the project consultant the output model becomes a process operations document and is included within the Installation, Operations & Maintenance Manual provided by Tideflex with the system.
