Features

  • Ideal for difficult abrasive slurry service
  • Replaceable elastomer cartridge seats
  • Heavy-duty 150-psi stainless steel gate
  • Bi-directional droptight shutoff

Materials of Construction

  • Cast Iron Body to 24″
  • Fabricated Steel Body over 24″
  • Optional 304SS or 316SS body
  • Gate ASTM A240 T-316
  • Optional 17-4 Ph, Hastelloy C, or Teflon coated 316 SS
  • ANSI Class 125/150#
  • Slurry sleeves: Pure Gum Rubber, Buna-N, EPDM, and Viton.

Description

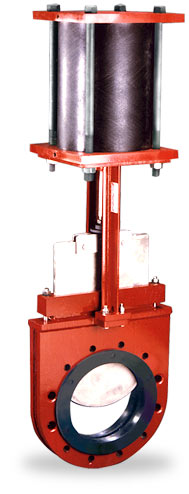

Red Valve’s Flexgate Valves are available with pneumatic, electric or hydraulic actuators. Other options include limit switches, solenoids and air regulators.

The actuated Flexgate provides long-term abrasion resistance under high-cycle conditions. The valve self-cleans each time it is cycled and is ideal for automated operations.

Red Valve manufactures its pneumatic actuators using Black Amalgon, a fiberglass-reinforced epoxy resin. The actuator material is inert to most corrosive chemicals, hydraulic fluids, water and oil. It has an operating temperature range from -90°F to 225°F and can withstand maximum working pressures of 250 psi. Inside the actuator walls are polished and impregnated with molydisulfide for reduced friction and wear. The piston seal is a long-lasting O-ring. The piston rod is sealed with a lip seal, which is protected by a rod wiper ring. This wiper ring prevents dirt from being dragged through the seal.

Downloads

Cut Sheet – Actuated Flexgate
