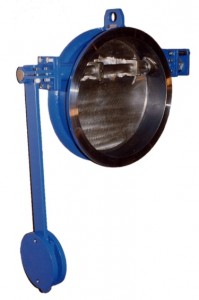

The H-940 Tilting Disk Check Valve is similar to H-920 Wafer Swing Check, except the shaft is closer to valve centerline; this balances the disk so that the valve will open at a low pressure differential.
Available with O-ring shaft seals to reduce friction. Available with wafer-style body (as shown) or with full flange with threaded bolt holes. Available with external counterweight or spring.
The H-940 can be fabricated from any weldable alloy and is clearly marked to show direction of flow.
Available in sizes 12″ and larger.
Tilting Disk Check Valve (H-940) Specifications
up to 1000°F
up to 150 psi
Metal or Resilient
Valves are available in solid or wetted parts construction in any weldable alloy, including Stainless Steel, Hastelloy, Inconel, Monel and Titanium.
Optional abrasion and corrosion resistant designs with hard facing available in Stellite, Tungsten Carbide, Pulse Fusion.
