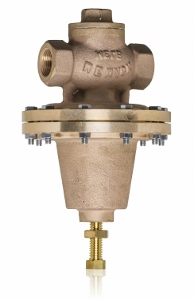

773 Series (Bronze) & 779 Series (Stainless Steel), PN25

BSPT, NPT Ends

Material: Bronze, Brass, AB Brass, Manganese Bronze

Applications: Liquid, Gas & Oxygen Services

Working Temperature: -196°C to + 190°C

Max Working Pressure: 2.5 Mpa (362 psi), Non-Shock Cold

Standards

Degreased, Packed and labelled for Oxygen Services (ASTM G93)
Designed in accordance with EN12516 part 1, 2 & 4, AS1210, AS1271, ASME 16.24, ASME B16.34
End Connection: ISO 7-1, ASME B1.20.1
Tested to API 598
CE, Pressure Equipment Directive (97/23/EC)

Notes

Various sizes available upon request. Various materials (HTB1, Monel) are available upon request
