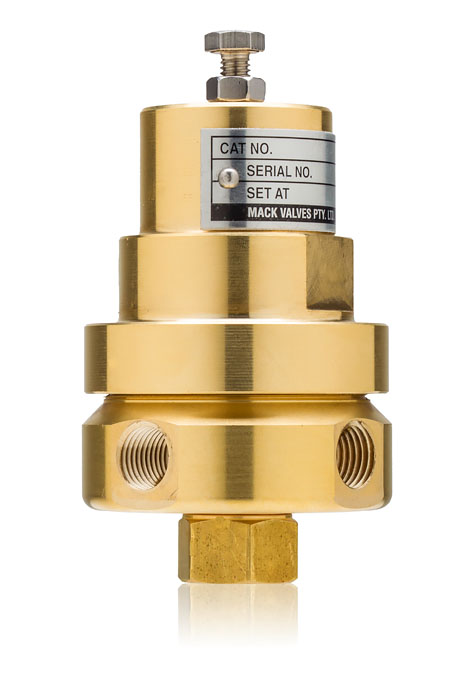

771 Series

BSPT, NPT Ends

Material: Brass

Applications: Liquid, Gas & LNG Services

Working Temperature: -196°C to +120°C

Max Working Pressure: 3.8 Mpa (550 psi), Non-Shock Cold

Standards

Degreased, Packed and labelled for Oxygen Services (ASTM G93)
Design accordance with EN12516 part 1, 2 & 4, AS1210, AS1271, ASME 16.24, ASME
B16.34
End Connection: ISO 7-1, ASME B1.20.1

Notes

Economiser port is at 90 degrees to the inlet port
