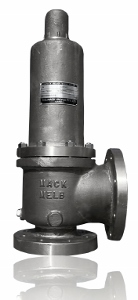

729 Series

Flange Type – ANSI, DIN EN, AS/BS

Material: Stainless Steel

Applications: Liquid, Gas & Oxygen Service

Working Temperature: -196°C to +190°C

Max Working Pressure: 150# – 1.9 Mpa (275 psi), Non-Shock Cold

Max Working Pressure: 300# – 4.96 Mpa (720 psi), Non-Shock Cold

Max Working Pressure: 600# – 9.93 Mpa (1440 psi), Non-Shock Cold

Max Working Pressure: 900# – 14.89 Mpa (2160 psi), Non-Shock Cold

Max Working Pressure: 1500# – 24.82 Mpa (3600 psi), Non-Shock Cold

Max Working Pressure: 2500# – 41.36 Mpa (6000 psi), Non-Shock Cold

Standards

Degreased, Packed and labelled for Oxygen Services (ASTM G93)
Designed in accordance with API 526, AS 1210, AS1271, ASME B16.24
End Connections: API 526, ASME B16.24, ASME B16.5, AS 2129, EN 1092, ISO 7005, DIN 2501
Tested to API 527

Notes

Various materials (Monel) are available upon request. Available with easing gear
