7038 (gunmetal), 7048 (gunmetal). 7098 (stainless steel)

BSPT Ends

Material: Gun Metal, Stainless Steel

Max Working Temperature: 190°C 374°F

Max Working Pressure: 1725kPa – 2520 kPa (250 psi – 365 psi) pending size

Notes

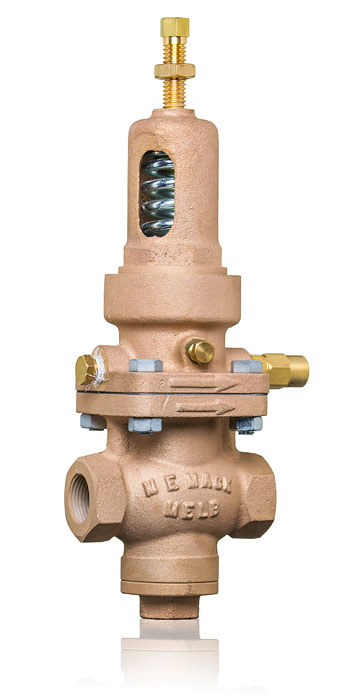

Sizes 15mm – 50mm. Pilot operated, diaphragm controlled, bolted cover, bronze piston and working parts, stainless steel disc and seat fi tted with plain plunger for water, steam, oil, liquids, air or gas. End connections screwed B.S.P.T. Female.
