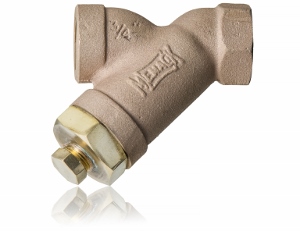

674 Series (Bronze), 670 Series (Stainless Steel)

Bronze: BSPT, NPT, Toe Nipple Ends, Stainless Steel: BSPT, NPT, Socket Weld Ends

Material: Bronze, Brass, AB Brass, Stainless Steel

Applications: Liquid, Gas & Oxygen Service

Working Temperature: -196°C to +190°C

Max Working Pressure (Bronze): 4.2 Mpa (600 psi), Non-Shock Cold

Max Working Pressure (Stainless Steel): 4.96 Mpa (720 psi), Non-Shock Cold

Standards

Designed in accordance with EN12516 parts 1, 2 & 4, ASME B16.34, ASME B16.24
End Connection: ISO 7-1, ASME B1.20.1, ASME B 16.11
Tested to ISO 5208, API 598
CE, Pressure Equipment Directive (97/23/EC)

Notes

Degreased, Packed for Oxygen Services. Various schedule pipe and tube connection is available upon request. Various material (HTB1, Monel) are available upon request
