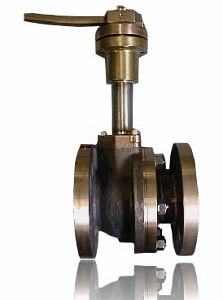

Flange Type – ANSI, DIN EN, AS/BS

Material: Bronze, Brass, Monel K500, Inconel X750

Applications: Liquid, Gas & Oxygen Services

Working Temperature: -196°C to + 190°C

Max Working Pressure: 150# – 1.55 Mpa (225 psi), Non-Shock Cold

Max Working Pressure: 300# – 3.45 Mpa (500 psi), Non-Shock Cold

Standards

Design accordance with EN12516 part 2 & 4, EN1626, AS1210, ASME B16.24
End Connection: ASME B16.24, ASME B16.5, AS 2129, BS 4504, EN 1092, ISO 7005, DIN 2501
Tested to ISO 5208, API 598
CE, Pressure Equipment Directive (97/23/EC)

Notes

Degreased, Packed and labelled for Oxygen Services. Face to face connection: Flat Face and RF Various material (HTB1) are available upon request. Mounting options: lever, gearbox and actuator
