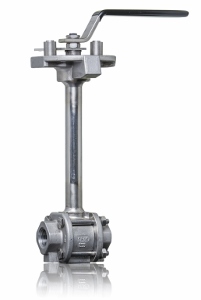

550 Series, 600#

BSPT, NPT, Socket Weld Ends

Material: Stainless Steel

Applications: Liquid, Gas & LNG Services

Working Temperature: -196°C to + 190°C

Max Working Pressure: 600# – 9.93 Mpa (1440 psi), Non-Shock Cold

Standards

Design accordance with EN1626, AS1210, ASME 16.34, ASME B31.3, MSS-SP25
End Connection: ISO 7-1, ASME B1.20.1, B16.11
Tested to ISO 5208, API 598, MSS-SP61
CE, Pressure Equipment Directive (97/23/EC)
Firesafe tested to API 607

Notes

Degreased, Packed and labelled for Oxygen Services
