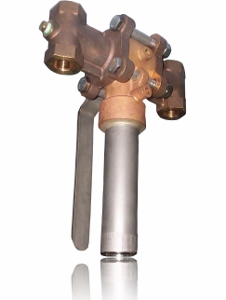

513 Series (Bronze), 519 Series (Stainless Steel), PN50

BSPT, NPT Ends

Material: Bronze

Applications: Liquid, Gas & Oxygen Services

Working Temperature: -196°C to +190°C

Max Working Pressure: 5.0 Mpa (725 psi), Non-Shock Cold

Standards

Degreased, Packed and labelled for Oxygen Services (ASTM G93)
Designed in accordance with EN12516 part 1, 2 & 4, EN1626, API 1210, ASME B16.24 & ASME B16.34
End Connection: ISO 7-1 & ASME B1.20.1
Tested to ISO 5208, API 598
CE, Pressure Equipment Directive (97/23/EC)

Notes

Various schedule pipes and tubes connection are available upon request. Various materials (HTB1, Monel) are available upon request
