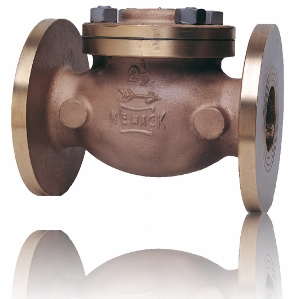

364 Series

Flange Type – ANSI, DIN EN, AS/BS

Material: Bronze, Brass

Applications: Liquid, Gas & Oxygen Services

Working Temperature: -196°C to +190°C

Max Working Pressure: 150# – 1.55 Mpa (225 psi), Non-Shock Cold

Max Working Pressure: 300# – 3.45 Mpa (500 psi), Non-Shock Cold

Standards

Degreased, Packed for Oxygen Services (ASTM G93)
Design accordance with EN12516 part 2 & 4, EN1626, AS1210, ASME B16.24
End Connection: ASME B16.24, ASME B16.5, AS 2129, EN 1092, ISO 7005, DIN 2501
Tested to ISO 5208, API 598
CE, Pressure Equipment Directive (97/23/EC)

Notes

Face to face connection: Flat Face and Raised Face. Various materials (HTB1) are available upon request
