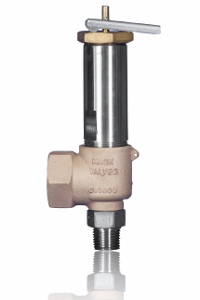

1723 Series (Stainless Steel Seat), 1724 Series (Mn.Br. Seat)

BSPT, NPT Ends

Material: Bronze, Brass, Manganese Bronze

Applications: Liquid, Gas & Oxygen Service

Working Temperature: -196°C to + 150°C

Maximum Set Pressure: 5.0 Mpa (725psi), Non-Shock Cold

Standards

Designed in accordance with EN12516 part 1& 2, AS1271, EN 4126-1, ASME B16.24
End Connection: ISO 7-1, ASME B1.20.1
Tested to API 527

Notes

Degreased, Packed and labelled for Oxygen Service. Various materials (HTB1) are available upon request
