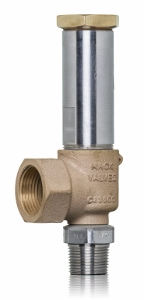

1713 Series (Stainless Steel Seat), 1714 Series (Mn.Br. Seat), PN50

BSPT, NPT Ends

Material: Bronze, Brass, Manganese Bronze

Applications: Liquid, Gas & Oxygen Service

Working Temperature: -196°C to + 150°C

Maximum Set Pressure: 5.0 MPa (725 psi), Non-Shock Cold

Standards

Designed in accordance with EN12516 part 1, 2 & 4, AS1271, EN 4126-1, ASME B16.24
End Connection: ISO7-1, ASME B1.20.1
Tested to API 527

Notes

Degreased, Packed for Oxygen Service. Various materials (HTB1) are available upon request
