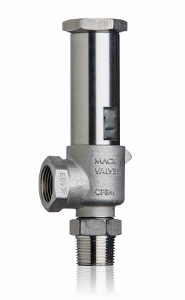

1710 Series (PTFE Gasket), 1719 Series (Copper Gasket), PN50

BSPT, NPT Ends

Material: Manganese Bronze

Applications: Liquid, Gas & Oxygen Service

Working Temperature: -196°C to + 150°C

Maximum Set Pressure: 5.0 MPa (725 psi), Non-Shock Cold

Standards

Designed in accordance with EN12516 part 1, 2 & 4, AS1271, EN 4126-1, ASME B16.34
End Connection: ISO 7-1, ASME B1.20.1
Tested to API 527

Notes

Degreased, Packed for Oxygen Service. Various materials (Monel) are available upon request
