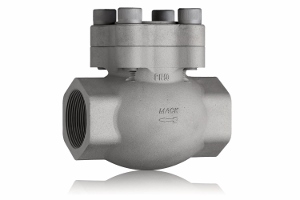

1258 Series (Stainless Steel Trim), 1256 Series(Brass Trim), PN50

BSPT, NPT, Socket Weld, Butt Weld Ends

Material: Brass

Applications: Liquid, Gas & Oxygen Services

Working Temperature: -196°C to +190°C

Max Working Pressure: 5.0 Mpa (725 psi), Non-Shock Cold

Standards

Degreased, Packed and labelled for Oxygen Service (ASTM G93)
Design accordance with EN12516 part 1 & 2, AS1210, EN1626, ASME B16.34
End Connection: ISO 7-1, ASME B1.20.1
Tested to ISO 5208, API 598
CE, Pressure Equipment Directive (97/23/EC)

Notes

Various materials (Monel), schedule pipe and tube connection are available upon request
