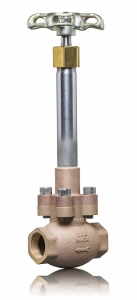

1203 Series, PN50
BSPT, NPT, Toe Nipple Ends
Material: Bronze, Brass
Applications: Liquid, Gas, LNG & Oxygen Services
Working Temperature: -196°C to +190°C
Max Working Pressure: 5.0 Mpa (725 psi), Non-Shock Cold
Standards
Degreased, Packed and labelled for Oxygen Services (ASTM G93)
Design accordance with EN12516 part 2 & 4, AS1210, EN1626, ASME B16.24
End Connection: ISO 7-1, ASME B1.20.1
Tested to ISO 5208, API 598
CE, Pressure Equipment Directive (97/23/EC)
Notes
Various material (HTB1), schedule pipe and tube connection are available upon request
