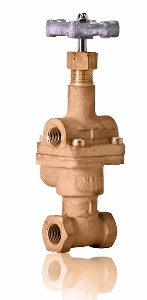

104 Series, PN25

BSPT, NPT Ends

Material: Bronze

Applications: Liquid, Gas & Oxygen Services

Working Temperature: -196°C to +190°C

Max Working Pressure: 2.5 Mpa (362.5 psi), Non-Shock Cold

Standards

Degreased, Packed for Oxygen Services
Designed in accordance with EN12516 part 2 & 4, AS1210, EN 1626, AS1271, ASME 16.24
End Connection: ISO 7-1, ASME B1.20.1
Tested to ISO 5208, API 598
CE, Pressure Equipment Directive (97/23/EC)

Notes

Various schedule pipe and tube connection are available upon request. Various material (HTB1) are available upon request
