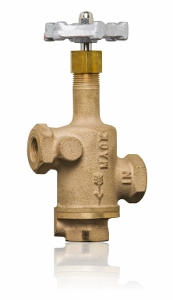

103 Series (Bronze), 109 Series (Stainless Steel), PN50

BSPT, NPT Ends

Material: Bronze, Brass, Manganese Bronze

Applications: Liquid, Gas & Oxygen Services

Working Temperature: -196°C to +190°C

Max Working Pressure: 5.0 Mpa (725 psi), Non-Shock Cold

Standards

Design accordance with EN12516 part 1& 2 & 4, ASME B16.34, ASME B16.24
End Connection: ISO 7-1, ASME B1.20.1
Tested to ISO 5208, API 598
CE, Pressure Equipment Directive (97/23/EC)

Notes

Degreased, Packed for Oxygen Services. Various schedule pipe and tube connection are available upon request. Various materials (HTB1, Monel) are available upon request. 32, 40, 50mm diverting valve inlet and outlet position are horizontally align
